Features
- Compact drone spotlight for UAV applications
- Up to 700 lumens of LED output
- Spot, area and flood beam modes
- Lightweight and low-profile design
- Rechargeable lithium-ion battery system
- Quick Swap® power pack for continuous operation
- Strobe function (90 cycles per minute)
- High color rendering (5700K, CRI 90)
- Durable and weather-resistant construction

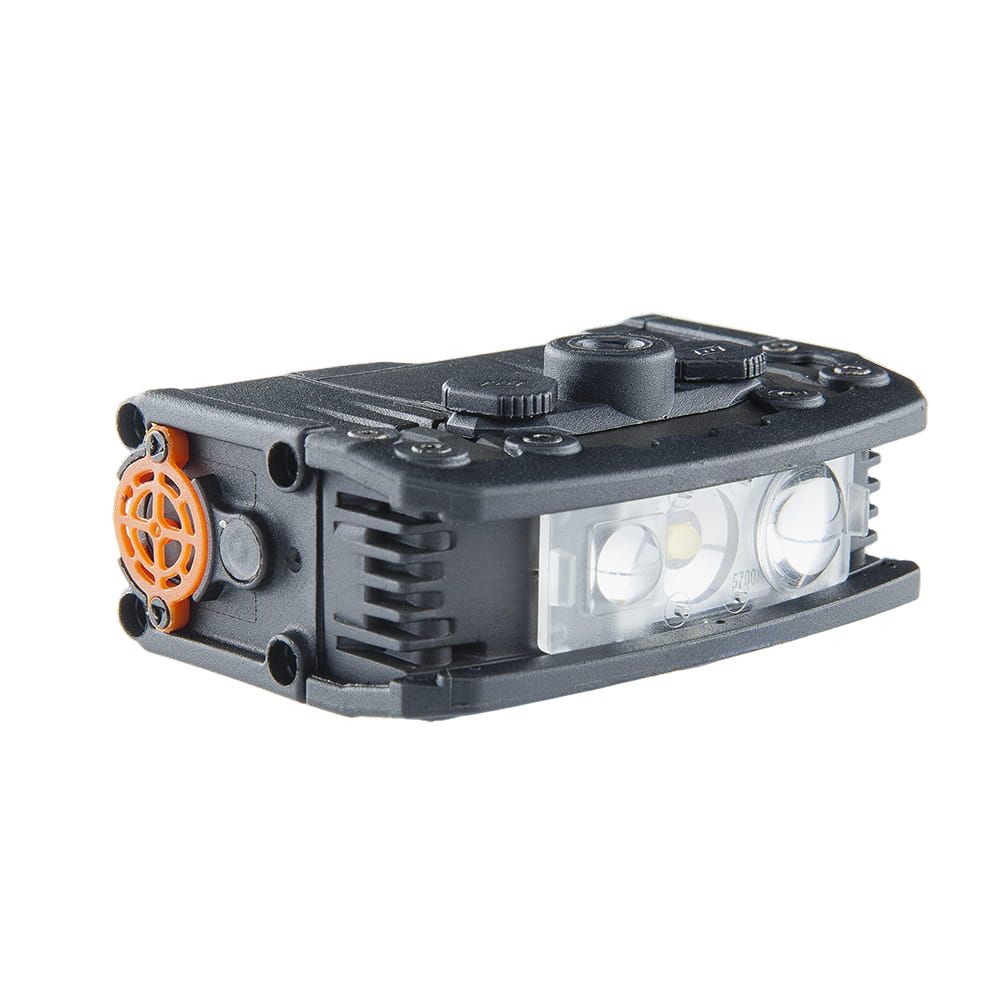

Compact and Lightweight Drone Light Design
Drone-mounted lighting must balance performance and weight. This drone spotlight is engineered to minimize impact on flight time while still delivering strong illumination.
- lightweight construction at 158 g (5.6 oz)
- compact housing for easy integration
- low power consumption for efficient operation
- quick-swap battery system for continuous use
This makes it ideal for UAV platforms where stability and efficiency are critical.
Specifications
| Lumens | 70 – 700 lumens |
| Battery Life | 1 – 6.75 hours |
| Power Source | Rechargeable lithium-ion battery system (Quick Swap® Power Pack with strobe, orange switch cover) |
| Modes | 4 modes (Low, Medium, High, Strobe) |
| Weight | 158 g (5.6 oz) with power pack and light head |
| Power Pack Weight | 73 g (2.6 oz) |
| Dimensions | 74 × 25 × 51 mm (2.9 × 1.0 × 2.0 in) |
| Certifications | CE, UKCA |
| Ingress Protection | IPX7 |
| Fire Resistant | Meets NFPA requirements |
| Waterproof | Yes |
| Impact Resistance | 7 m (22.9 ft) |
| Color Temperature | 5700K (CRI 90) |
| LED Color | White |
| Strobe Rate | 90 cycles per minute |
| Materials | Nylon 66 power pack, aluminum housing, acrylic Tri-Lens® |
| Beam Distance | Spot: 30 m (100 ft), Area: 10 m (30 ft), Flood: 3 m (10 ft) |
| Beam Angle | 25° spot, 55° area, 120° flood |
| Charging Input | Micro USB |
| Recharge Time | 2.5 hours |
