Key Features List
- AutoSync™ Technology: Beacons flash in sync when grouped with the same RF settings.
- Light Shaping Technology™: Customizable shields for focused or diffused light output.
- Patented Omnidirectional Optics: Provides 180° of diffused illumination.
- Reverse Polarity Program Switching®: Switch battery orientation for additional features.
- S.M.A.R.T Beacon Technology: Encrypted communication via a self-repairing mesh network.
- Flexible Tripods: Adjustable tripods to raise and position the beacons for optimal visibility.
Key Features List

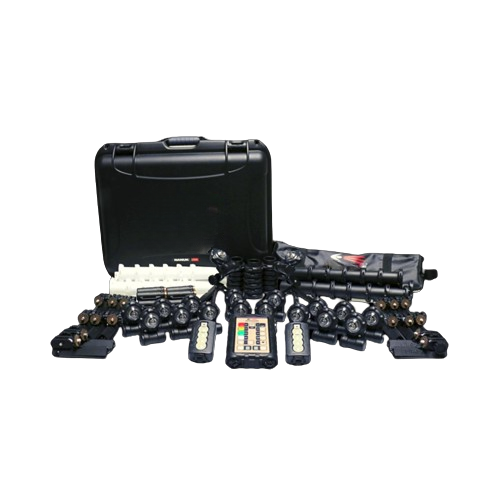

- Handheld Controller (1x)
- Encrypted Signal Repeaters (3x)
- VIPIR™ SMART Beacons (18x)
- Light Diffusers (18x)
- Long Light Shields (18x)
- Short Light Shields (18x)
- Powergrip™ Adapter Caps (18x)
- Tripod Mount Assembly for VIP (18x)
- Tripod Mount Assembly for Keyfob (3x)
- Tripods, 10cm (18x)
- Tripods, 40-120cm (21x)
- 8” Plastic Nails (63x)
- 3V 123A Lithium Batteries (18x)
- 1.5V AA Lithium Batteries (46x)
- Accessory Pouches (2x)
- NANUK™ Carry Case (1x)
Also available
| Kit Name | Number of Lights | Output Colors |
|---|---|---|
| UDRC, Full Landing Zone, 6 Light System | 6 | Red, Blue, Green, White, IR |
| UDRC, Full Landing Zone, 8 Light System | 8 | Red, Blue, Green, White, IR |
| UDRC, Full Landing Zone, 12 Light System | 12 | Red, Blue, Green, White, IR |
Specifications
| Beacon Output Colors | Red, Blue, Green, White, IR |
| Beacons in Kit | 18 VIPIR™ SMART Beacons |
| Signal Repeaters | 3 Encrypted Signal Repeaters |
| Controller Range | Kilometers (with repeaters) |
| Battery Type | 3V 123A Lithium / 1.5V AA Lithium |
| Tripods Included | 18 Tripods (10 cm) / 21 Tripods (40-120 cm) |
| Light Shaping Technology | Shields for collimating or diffusing light |
| Powergrip™ Battery Adapter Cap | Included for all 18 beacons |
| Durability | Waterproof and impact-resistant |
| Carry Case | NANUK™ Carry Case |
Applications
- Expeditionary Airfields: Provides landing zone lighting for temporary or remote airfields.
- Helicopter Landing Zones: Lights for helicopter landing pads in tactical or rescue operations.
- Drop Zones: Guides personnel and cargo drops in military operations.
- Command & Control (C2): Ensures secure and synchronized communication in operations.
- Identification Friend or Foe (IFF): Used for secure identification during tactical missions.
Additional information
The 18 Light Landing Zone Kit is designed for maximum flexibility and performance, featuring AutoSync™ Technology that enables multiple beacons to flash in unison for clear visual signals. With the S.M.A.R.T Beacon Technology, encrypted communication is relayed through a self-repairing ad hoc mesh network, ensuring reliable coordination between beacons, repeaters, and controllers even in the most challenging conditions.
The kit’s Light Shaping Technology™ allows operators to customize light output using diffusers and shields, providing either focused illumination or a wide viewing angle. The Reverse Polarity Program Switching® allows users to flip the battery orientation to unlock additional features, including separation of visual and infrared (IR) functions for covert operations.
The kit is rugged, portable, and designed to withstand harsh environments, making it perfect for military, rescue, or expeditionary operations. The durable NANUK™ case and included accessories ensure that everything is securely packed and ready for deployment in any scenario.
