Benefits
-
Autonomous emergency lighting power with smart mode switching
-
Self-test function ensures operational readiness at all times
-
Over 30 minutes of power at 10W for dependable lighting continuity
-
Built to perform in extreme aviation environments
-
Fully certified for use on defense aircraft
Application

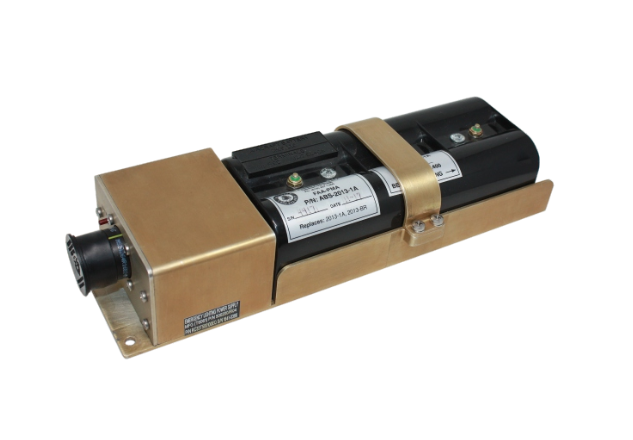

Model 500200 is essential for any military or tactical aircraft that requires fail-safe illumination for crew safety and emergency protocols. Ideal for integration with cockpit, cabin, or evacuation lighting systems, this unit activates automatically when main power is lost, providing more than 30 minutes of runtime under a 10W load.
Use it in both fixed-wing and rotary applications where blackout recovery and pilot visibility are mission-critical.
Specifications
| Mode | ON / ARM / OFF, with self-test functionality |
| Power Supply | 28 VDC |
| Capacity | > 30 minutes at 10W load |
| Operating Temperature | -55 °C to +80 °C |
| Compliance | RTCA DO-160G MIL-STD-810G MIL-STD-461F |
| Socket Type | MS24264R16B24PN |
| Dimensions | 290 mm (L) x 81 mm (W) x 64 mm (H) |
| Mounting | Panel mount via base plate with fasteners |
