Key Features
-
Can be mounted horizontally or vertically
-
Wide 12–48 V DC input range
-
UV-resistant polycarbonate lens
-
Low profile housing for compact installations
-
Long service life and reduced energy cost
Available Configurations:
| Part Number | Description | Connector / Switch | Timer | Certifications |
|---|---|---|---|---|

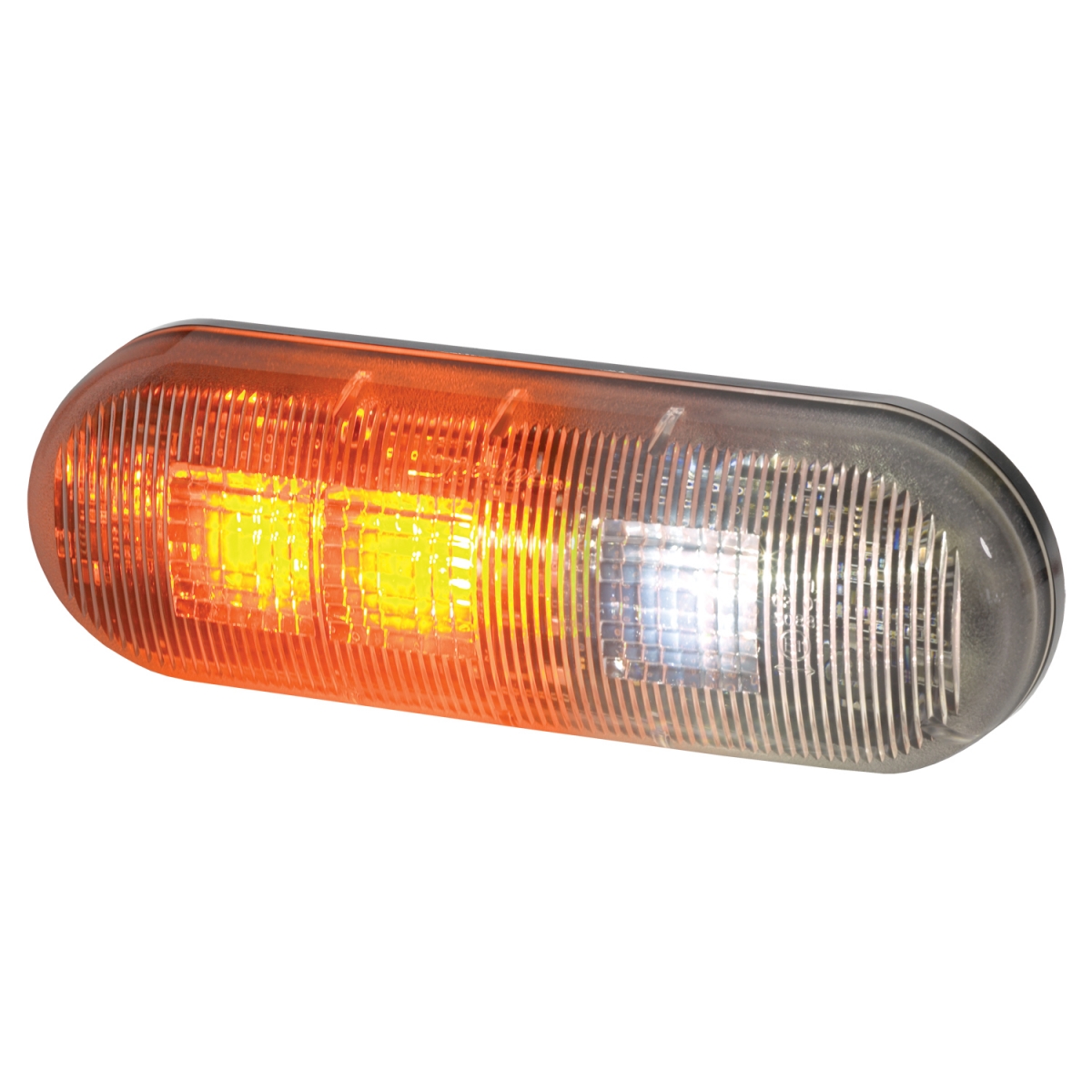

| 0343121 | LED Front Position & Front Turn Signal Light | Bare leads | No | Buy America, ECE Reg. 6 & 7, IP67, UL |
| 0442511 | Clear LED Dome Light, 7″ | Bare leads | No | Buy America, IP67, SAE J1113-13, UL |
| 0443011 | Clear LED Dome Light, 7″ | Bare leads with switch | No | Buy America, IP67, UL |
| 0443301 | Clear LED Dome Light, 7″ | Deutsch connector with switch | 60 min | Buy America, IP67, UL |
Specifications
| Input Voltage | 12–48 V DC |
| Dimensions | 7 in × 2 in (approx. 178 mm × 51 mm) |
| Housing | Low profile, UV resistant polycarbonate lens |
| Mounting | Horizontal or vertical |
| Environmental Rating | IP67 |
| Certifications | Buy America, UL, SAE J1113-13, ECE Reg. 6 and 7 (depending on model) |
