Features
-

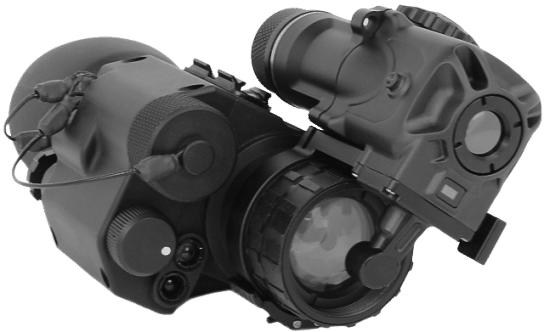

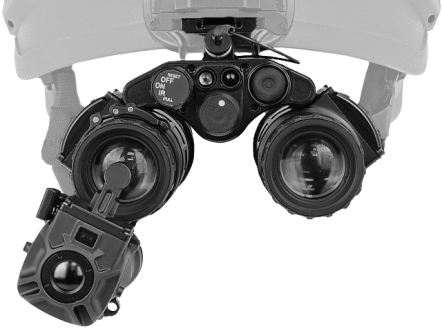

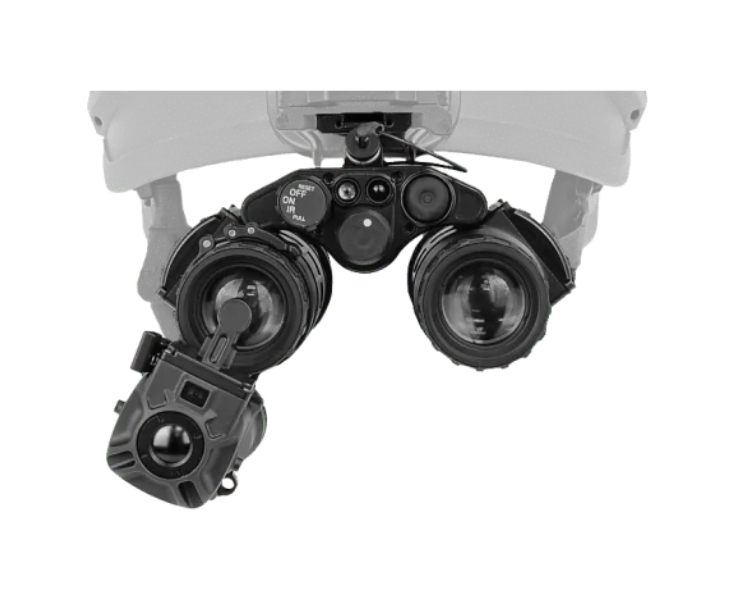

Seamless Integration: Attaches effortlessly to existing night vision devices without requiring modifications.
-
Enhanced Imaging: Provides thermal overlay to image-intensified displays, improving visibility in low-light, no-light, and obscured conditions.
-

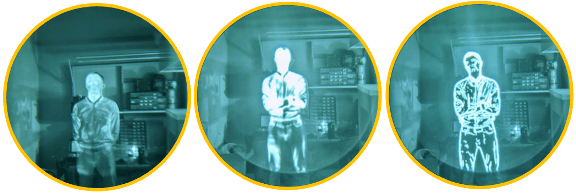

Multiple Imaging Modes: Includes Full Thermal (White-Hot), Hot Spot, Heat Outline, and Pulse modes for versatile operational needs.
-
Quick-Connect Interface: Allows for rapid mounting and dismounting in the field.
-
Compact and Lightweight: Weighs only 105 grams, minimizing user fatigue.
-
Power Options: Operates on a single CR123 or 18650 battery, with external power support via USB.
-
Durable Construction: Built to withstand harsh environmental conditions, ensuring reliability in diverse operational settings.
Specifications
| FPA Type | Uncooled, VOx |
| Resolution & Pitch | 640×512, 12μm |
| Refresh Rate | 50Hz |
| Optical Magnification | 1× |
| Field of View | 30.5° with 76% coverage on 40° IIT |
| Imaging Modes | Full Thermal (White-Hot), Hot Spot, Heat Outline, Pulse |
| Power Source | 1× CR123 or 18650 battery; external USB power |
| Weight | 105 grams |
| Dimensions | 80 × 34 × 34 mm |
| Environmental Protection | Built to withstand harsh conditions |
| Warranty | 7 years, limited |
