Work Light with Multifuncitional Beam

Work Light with Multifuncitional Beam

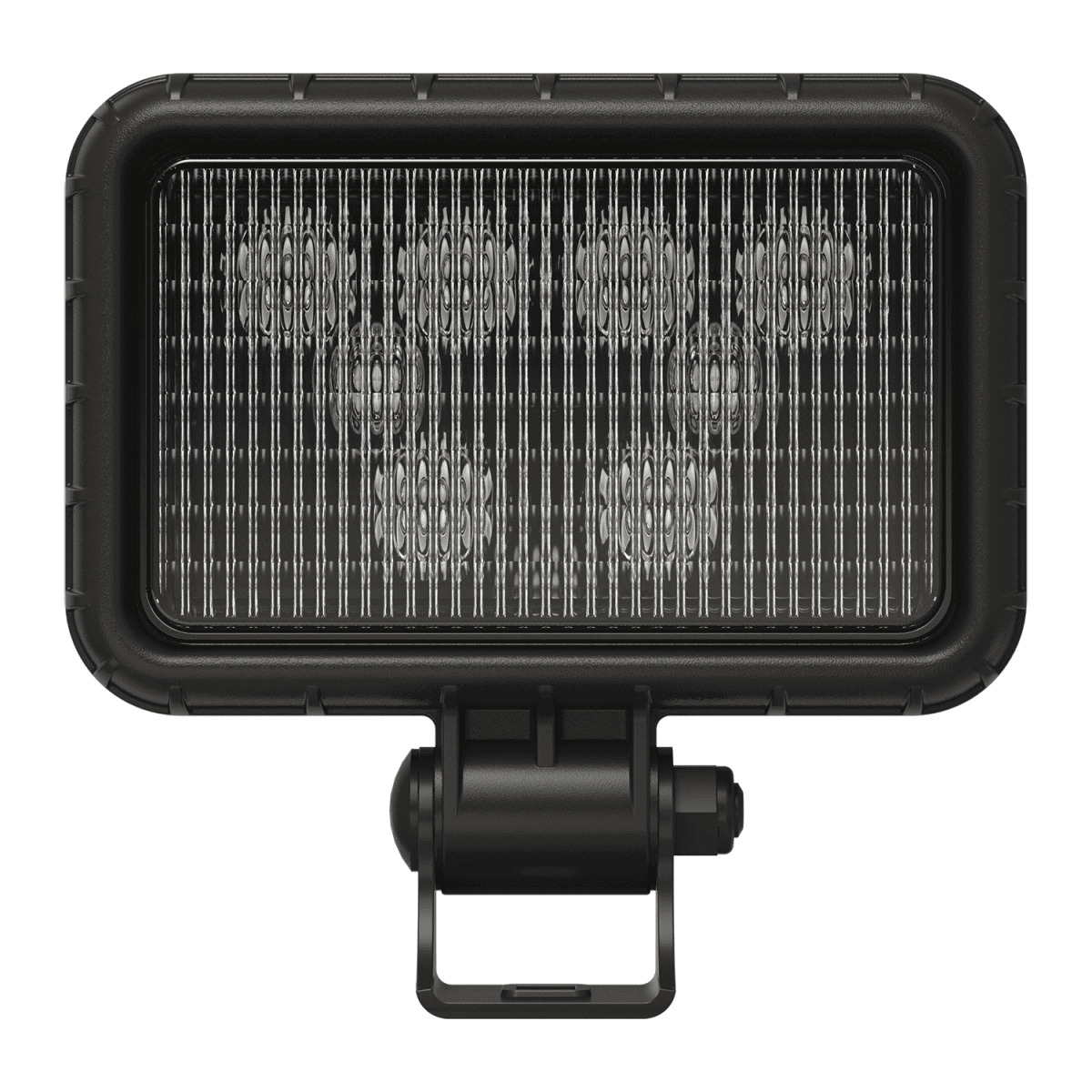

Introducing the Model 880 XD LED Work Lights, designed with a compact yet robust 5-inch by 3-inch frame that makes them perfect for tight spaces and various work environments. These versatile lights come in a DC configuration, providing flexibility for different power sources.

You can choose from various beam patterns to meet your specific lighting requirements, ensuring you get the right level of illumination for any task. Plus, the Model 880 XD is offered with or without an integrated on/off switch, so you can pick the model that best suits your needs.

The work lights feature a universal mount, making installation simple and adaptable to different surfaces and setups. Despite their smaller size, the Model 880 XD delivers performance that matches the larger Model 881 XD, ensuring you receive the same high level of brightness and durability. Ideal for demanding applications, the Model 880 XD combines compact design with powerful, reliable lighting to enhance productivity and visibility.

Applications

  • Agriculture
  • Automotive
  • Construction
  • Industrial
  • Material Handling
  • Mining
  • Off-Road 4×4
  • Railroad
  • Specialty Vehicles
  • Truck & Bus
dimensions of the model 880 multi functional beam

Looking for something different? Maybe the Model 893 with a compact build is more fit for your situation. Check it out here!

Compact work light model 893

Flood Beam

Product 12-24V LED Work Light with Flood Beam Pattern
Height 133.35 mm / 5.25 in
Width 137.16 mm / 5.4 in
Depth 47.75 mm / 1.88 in
Shape Rectangular
Outer Lens Material Polycarbonate
Outer Lens Color Clear
Housing Material Polycarbonate
Housing Color Black
Mounting Hardware Description (x1) 5/16″-18 x 1.00″ Mounting Bolt
Mounting Type Universal Pedestal Mount
Minimum Operating Temperature -40 °C / -40 °F
Maximum Operating Temperature 65 °C / 149 °F
Connector or Wiring Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
Mating Connector 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
Product Weight 0.82 lbs / 0.37 kgs
Shipping Weight 1.16 lbs / 0.53 kgs

Spot Beam

Product 12-24V LED Work Light with Spot Beam Pattern
Height 133.35 mm / 5.25 in
Width 137.16 mm / 5.4 in
Depth 47.75 mm / 1.88 in
Shape Rectangular
Outer Lens Material Polycarbonate
Outer Lens Color Clear
Housing Material Polycarbonate
Housing Color Black
Mounting Hardware Description (x1) 5/16″-18 x 1.00″ Mounting Bolt
Mounting Type Universal Pedestal Mount
Minimum Operating Temperature -40 °C / -40 °F
Maximum Operating Temperature 65 °C / 149 °F
Connector or Wiring Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
Mating Connector 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
Product Weight 0.82 lbs / 0.37 kgs
Shipping Weight 15.00 lbs / 6.8 kgs

Trapezoid Beam

Product 12-24V LED Work Light with Trapezoid Beam Pattern
Height 133.35 mm / 5.25 in
Width 137.16 mm / 5.4 in
Depth 47.75 mm / 1.88 in
Shape Rectangular
Outer Lens Material Polycarbonate
Outer Lens Color Clear
Housing Material Polycarbonate
Housing Color Black
Mounting Hardware Description (x1) 5/16″-18 x 1.00″ Mounting Bolt
Mounting Type Universal Pedestal Mount
Minimum Operating Temperature -40 °C / -40 °F
Maximum Operating Temperature 65 °C / 149 °F
Connector or Wiring Integrated 2-Pin Deutsch Weather-Proof Socket (DT04-2P)
Mating Connector 2-Pin Deutsch Weather-Proof Plug (DT06-2S)
Product Weight 0.82 lbs / 0.37 kgs
Shipping Weight 1.16 lbs / 0.53 kg
