Benefits
-
Dedicated emergency light system for critical visibility
-
Compact and lightweight with durable enclosure
-
Operates independently on low-voltage backup power
-
Certified to leading aerospace and defense standards
-
Maintenance-free with long-life LED reliability
Application

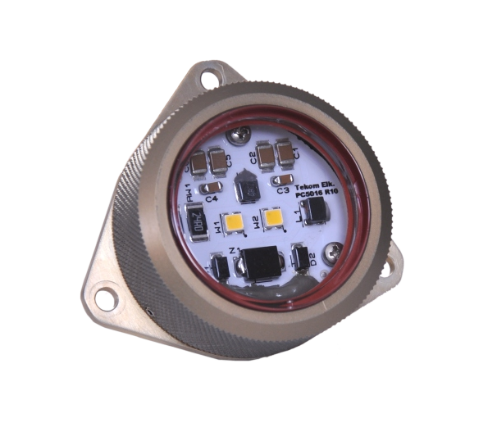

Model 500090 is designed for use during power-loss conditions or critical failures where aircraft visibility must be maintained to support recovery operations, secure landings, or crew evacuation.
It operates independently on a 7 VDC line and is optimized for military-grade reliability in high-vibration, high-altitude, and all-weather environments. Perfect for both OEM aircraft builds and retrofit safety upgrades.
Specifications
| Light Source | LED |
| Power Supply | 7 VDC |
| Power Consumption | 2W |
| MTBF | > 20,000 flight hours |
| Operating Temperature | -55 °C to +80 °C |
| Compliance | RTCA DO-160G MIL-STD-810G MIL-STD-461F |
| Socket Type | D38999/20JA35PN |
| Dimensions | Ø69 mm x 37 mm depth |
| Mounting | Tri-point flange with 3x Ø4.2 mm holes (60° spacing) |
