Features
- Dual Burn® High Beam Optics: Dual Burn® provides an extra burst of light.
- Plug-and-Play Installation: Simple setup for 7″ LED headlights.
- ECE Compliant: Suitable for on-road use.
- Bezel Options: Available in black or chrome.
- ComfortLite® High Beams: Optimized for comfort during high-beam usage.

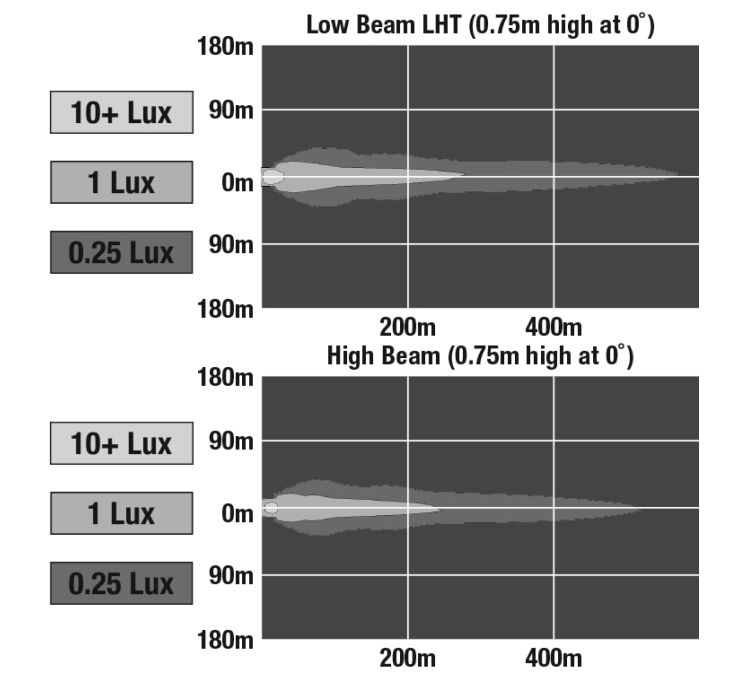

Effective Lumen Isolux Charts
Applications
- Automotive
- Railroad
- Agriculture
- Construction
- Industrial
- Motorcycle
- Off-Road 4×4
- Powersports
- Specialty Vehicles
- Truck & Bus
Specifications
| Model | 8700 EVO 2 PRO |
| Compliance | ECE Compliant drop-in replacement for 7″ round headlights |
| Lumen Output | Raw: 3,200 (High), 1,770 (Low); Effective: 1,260 (High), 750 (Low) |
| Candela Output | High beam: 54,000; Low beam: 35,003 |
| Input Voltage | 12V – 24 V DC |
| Current Draw | 3.50A @ 12V DC (High Beam) |
| Lens Material | Polycarbonate |
| Housing Material | Aluminum |
| Mounting Type | 2D1 “PAR56” or 7” round headlights |
| Connector | H4 |
| Wiring | Black: Ground, Yellow: Low Beam, White: High Beam, Red: Park (Front Position), Blue: DRL |
| Standards | Sealed to IP 67, ECE Reg. 7, 10, 87, & 112 |
Part Numbers
| Part No. | Description |
|---|---|
| 0556961 | LHT High & Low Beam Headlight with DRL – Black |
| 0556981 | RHT High & Low Beam Headlight with DRL – Black |
| 0556321 | LHT High & Low Beam Headlight Heated – Black |
| 0556301 | RHT High & Low Beam Headlight Heated – Black |
| 0557501 | LHT High & Low Beam Headlight – Black |
| 0557511 | RHT High & Low Beam Headlight – Black |
Additional Specifications
| Part No. | Specification Code | Remark |
|---|---|---|
| 0547932 | NSN: 6220-01-600-5069 | |
| 0546351 | NSN: 6220-01-616-1079 | |
| 820001 | Model 8700 Mounting Ring | 13013616GRN USA |
Frequently Asked Questions
The Dual Burn® optic provides an additional burst of high-intensity light beyond the standard high beam, enhancing visibility at distance when required. During normal driving, the headlight operates in low-beam mode, but when you switch to high beam, Dual Burn® activates automatically for extended illumination without the need for additional lamps.
Yes. The 8700 EVO 2 PRO is ECE-compliant, meeting regulations 7, 10, 87 & 112. It is designed as a direct replacement for 7″ round (PAR56) headlights, meaning it fits standard housings and wiring, and meets both high beam and low beam legal requirements in many jurisdictions.
It features an IP67 rating, which means it’s fully dust tight and can withstand immersion up to 1 meter for a limited time. The rugged aluminum housing and polycarbonate lens ensure durability against environmental stresses like rain, road spray, mud, and vibration, making it ideal for all-weather, all-terrain use.
