Features
- All-in-One Functionality: Combines high beam, low beam, turn signal, DRL, and front position lights in a single unit.
- SmartHeat® Technology: Automatically de-ices the lens to keep headlights clear in the harshest conditions.
- Low-Profile Design: At 3.25″, it ensures a clear road view compared to conventional taller lights.
- Durable Construction: Sealed to IP69K standards for protection against water, dust, and pressure washing.
- Universal Mounting Options: Compatible with single and double stud mounts.
- Bright LEDs: Simulate daytime lighting for maximum visibility.
- Weather-Resistant Lens: Sloped design prevents snow and ice accumulation, reducing downtime.
Part Numbers:
| Part No. | Voltage | Traffic Orientation | Kit Type |
|---|---|---|---|
| 0556273 | 12–24V | DOT/ECE RHT | 2 Light Kit |
| 0556383 | 12–24V | ECE LHT | 2 Light Kit |
Specifications

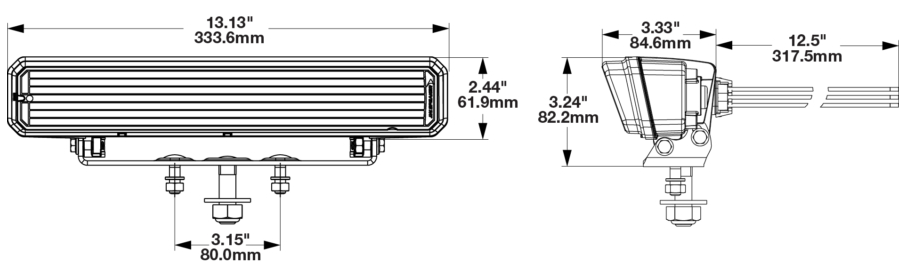

| Description | 3.25″ x 13″ Low-Profile Heated LED Snowplow Headlight |
| Input Voltage | 12V – 24V DC |
| Beam Options | High Beam, Low Beam, Turn Signal, DRL, Front Position |
| Heating System | SmartHeat® Technology |
| Lens Material | UV-Resistant Polycarbonate |
| Housing Material | Heavy-Duty Die-Cast Aluminum |
| Mounting Type | Single or Double Stud Mount |
| Standards | DOT, ECE, FMVSS 108, SAE, IP69K |
