Features
-
High-output performance with daylight-like visibility
-
Modular optic platform for flexible integration
-
Simple H4 plug-and-play installation
-
Integrated 5-in-1 lighting: high beam, low beam, DRL, position, and turn signal
-
SmartHeat® technology reduces ice and snow buildup on the lens
-
Dual Burn® optics: wide low beam coverage and strong long-distance high beam
-
Built to perform in extreme and demanding environments
-
Maintains full brightness even at low voltage
-
Dual compliant with DOT and ECE regulations (turn signal not DOT compliant)
-
Buy American Act compliant
Part Numbers (Non-Heated)
| Part Number | Description |
|---|---|
| 0562021 | 12-24V DOT/ECE LED RHT Asymmetric Low Beam Headlight with Black Bezel |
| 0562031 | 12-24V DOT/ECE LED RHT Asymmetric Low Beam Headlight with Chrome Bezel |
| 0562061 | 12-24V DOT/ECE LED High Beam Headlight with Black Bezel |
| 0562071 | 12-24V DOT/ECE LED High Beam Headlight with Chrome Bezel |

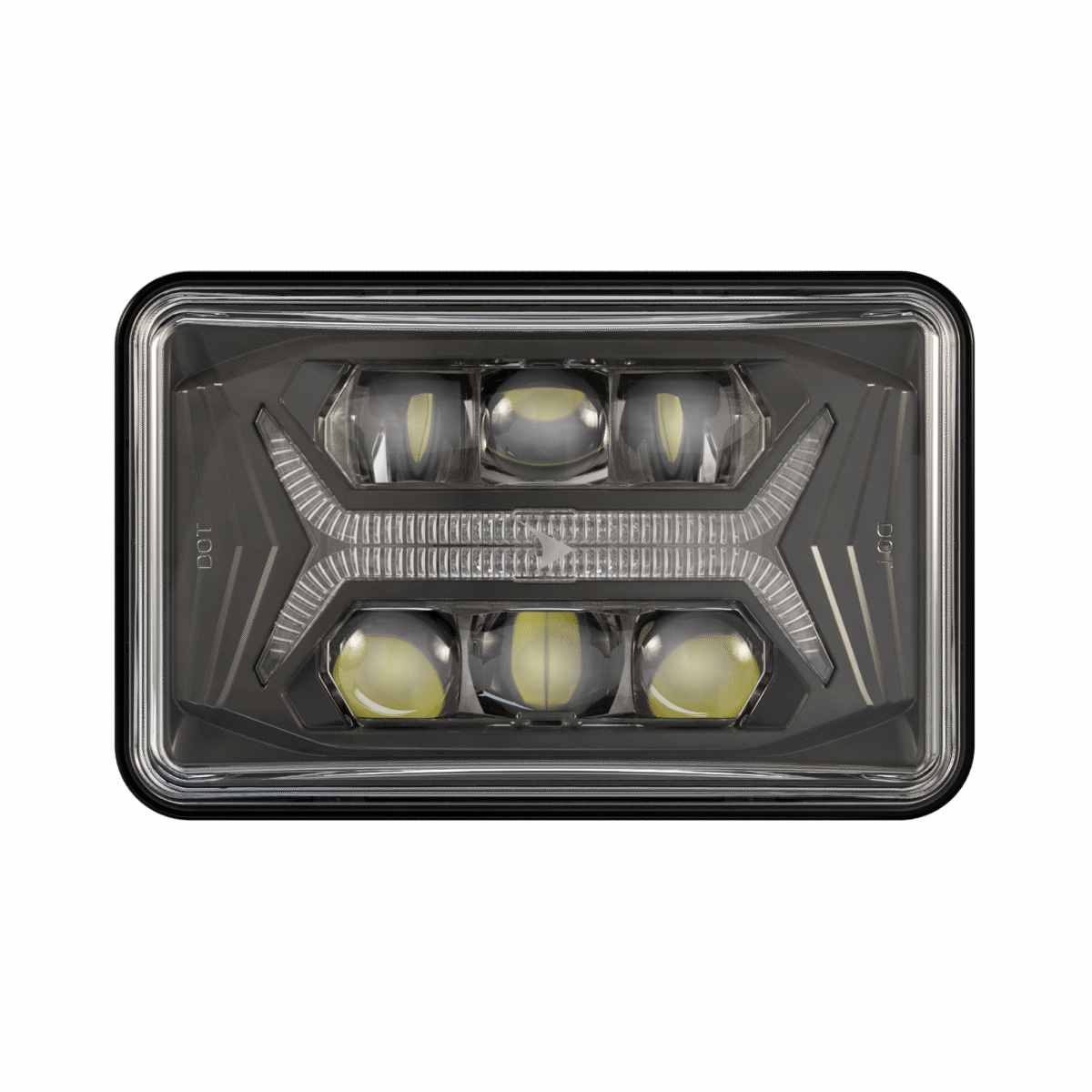

| 0562101 | 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Black Bezel |
| 0562111 | 12-24V DOT/ECE LED RHT 5-in-1 Headlight with Chrome Bezel |
| 0562161 | 12-24V DOT LED High and Symmetric Low Beam Headlight with Black Bezel |
| 0562171 | 12-24V DOT LED High and Symmetric Low Beam Headlight with Chrome Bezel |
| 0562191 | 12-24V DOT/ECE LED RHT High and Low Beam Headlight with Front Position with Black Bezel |
| 0562201 | 12-24V DOT/ECE LED RHT High and Low Beam Headlight with Front Position with Chrome Bezel |
| 0562211 | 12-24V ECE LED LHT High and Low Beam Headlight with Front Position with Black Bezel |
| 0562221 | 12-24V ECE LED LHT High and Low Beam Headlight with Front Position with Chrome Bezel |
Part Numbers (Heated)
| Part Number | Description |
|---|---|
| 0562041 | 12-24V DOT/ECE LED RHT Asymmetric Low Beam Heated Headlight with Black Bezel |
| 0562051 | 12-24V DOT/ECE LED RHT Asymmetric Low Beam Heated Headlight with Chrome Bezel |
| 0562081 | 12-24V DOT LED High Beam Heated Headlight with Black Bezel |
| 0562091 | 12-24V DOT LED High Beam Heated Headlight with Chrome Bezel |
| 0562121 | 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Black Bezel |
| 0562131 | 12-24V DOT/ECE LED RHT 5-in-1 Heated Headlight with Chrome Bezel |
Specifications
| Description | 12–24V DOT/ECE LED RHT 5-in-1 Headlight with Black Bezel |
| Shape | Rectangular |

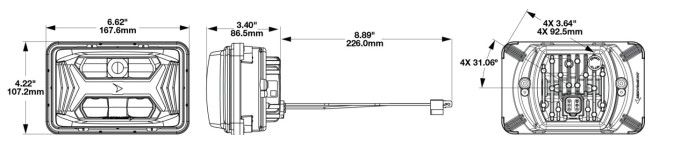

| Dimensions | 107.19 × 167.64 × 86.57 mm / 4.22 × 6.6 × 3.41 in |
| Housing Material | Polycarbonate |
| Housing Color | Black |
| Retrofits | 1A1 and 2A1 (4″ x 6″) Sealed Beams |
| Input Voltage | 12–24V DC |
| Operating Voltage | 9–32V DC |
| Current Draw | Low Beam: 2.09A @ 12V / 1.14A @ 24V High Beam: 4.55A @ 12V / 2.23A @ 24V Front Position: 0.26A @ 12V / 0.15A @ 24V DRL: 2.51A @ 12V / 1.28A @ 24V Turn Signal: 2.98A @ 12V / 1.53A @ 24V |
| Connector | Integrated 6-pin Deutsch |
| Mating Connector | Deutsch DT06-6S |
| Operating Temperature | -40°C to +65°C / -40°F to +149°F |
| Raw Lumen Output | 3,740 lm (High Beam) / 2,330 lm (Low Beam) |
| Effective Lumen Output | 1,420 lm (High Beam) / 740 lm (Low Beam) |
| Candela Output | 60,000 cd |
| Color Temperature | 5700 K |
| Beam Patterns | DRL, High Beam (ECE), Low Beam (ECE RHT), Front Position, Turn Signal |
| Compliance | ECE R10, R148 (1b, A, RL), R149 (C, HR), FMVSS 108 (Tables XIX, XVIII, XIV; s7.10, s7.8), SAE J1383, J2087, J222, IEC IP67, IP69K |

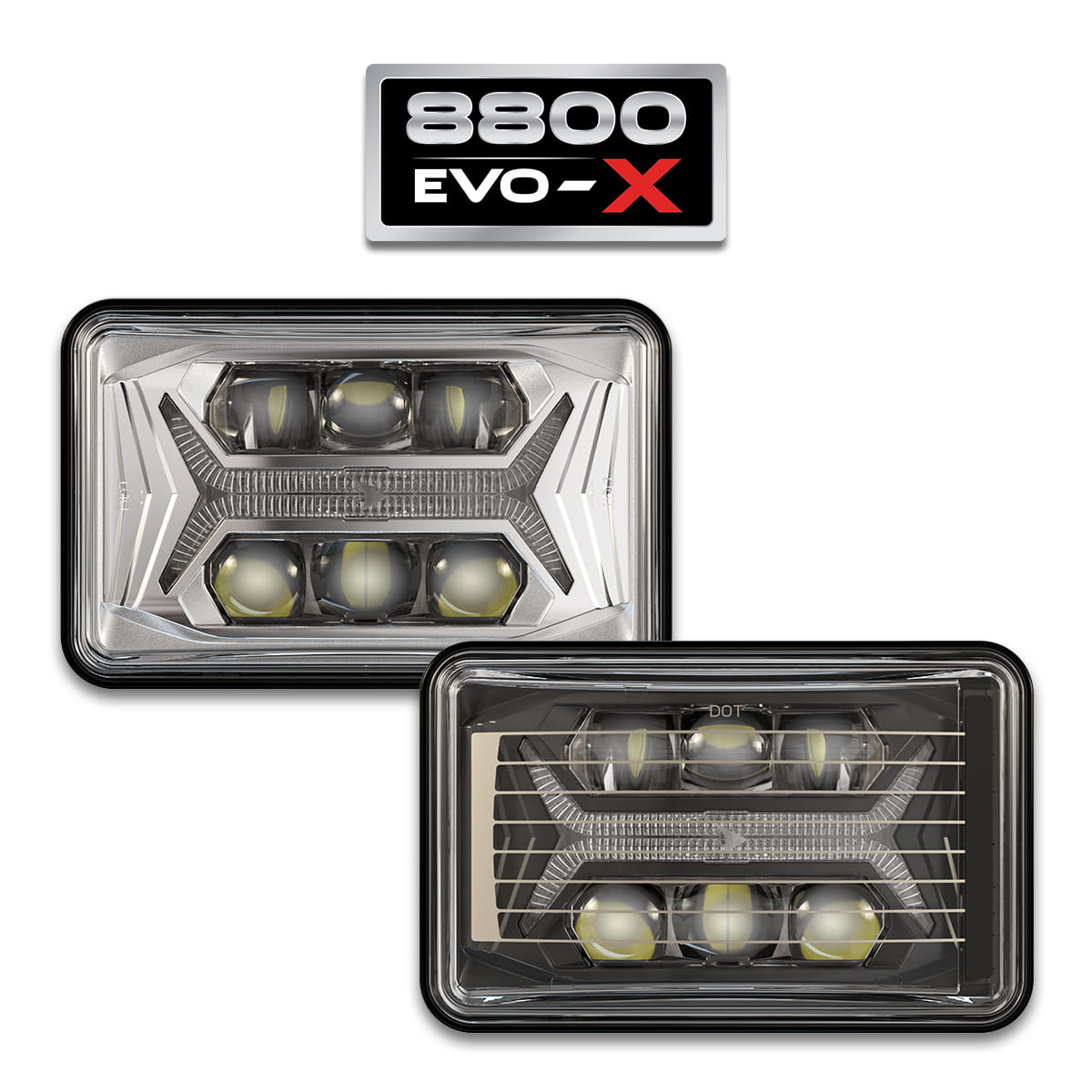

EVO-X™: The Future of Visibility
The EVO-X™ platform is a next-generation LED lighting system designed for exact fit, consistent performance, and easy integration across multiple vehicle types. Built as a unified platform, it delivers the same beam quality, functionality, and reliability across different headlight formats, while maintaining a distinctive modern design.
With integrated 5-in-1 lighting, advanced optics, and plug-and-play compatibility, EVO-X™ simplifies upgrades while ensuring dependable visibility in real-world conditions.

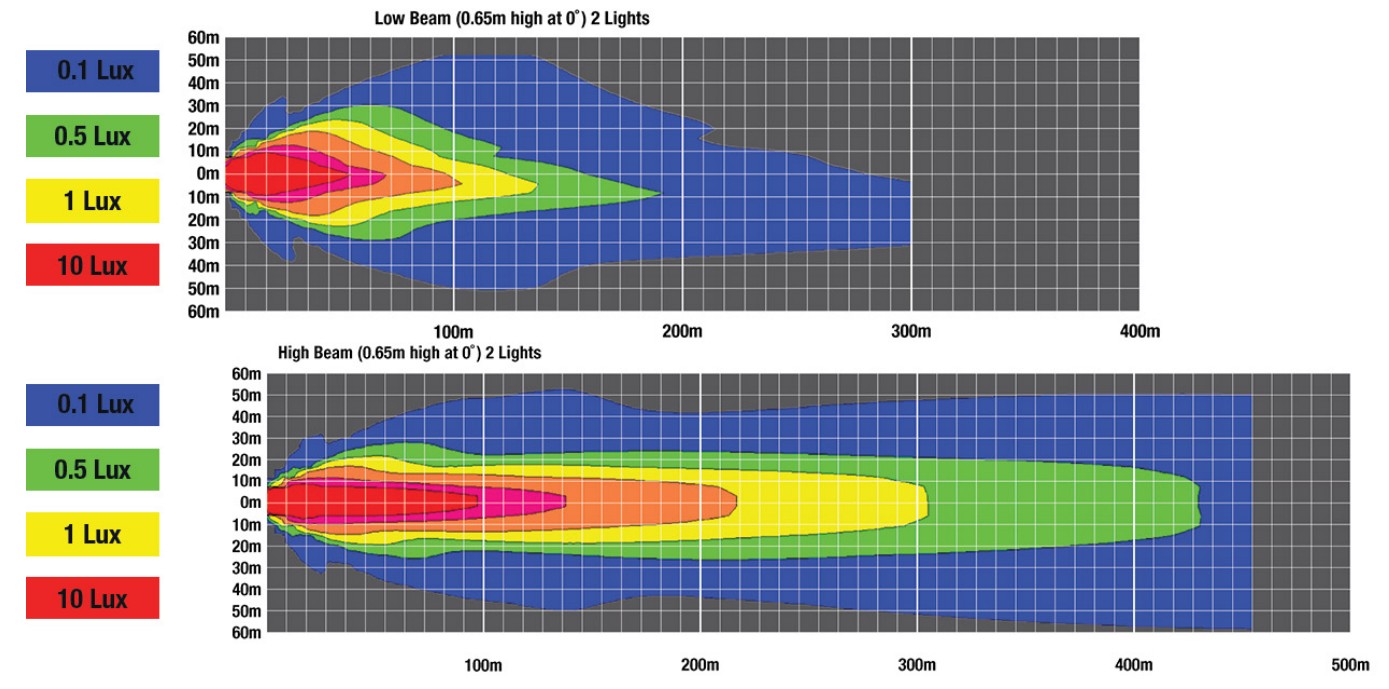

Effective Lumen Isolux Charts
Frequently Asked Questions
Yes, the Model 8800 EVO X is designed to replace standard 4×6” (1A1 / 2A1) sealed beam headlights, making it suitable for many trucks and heavy-duty vehicles.
Yes, it is available in DOT and ECE compliant versions. Always select the correct version based on your region and application.
