Benefits
-
Broad beam LED lighting optimized for cargo visibility
-
Sealed, rugged housing for harsh vibration and airborne environments
-
Maintenance-free, long-life performance
-
MIL-STD and RTCA compliant for aviation platforms
-
Easy retrofit into existing cargo bay systems
Application

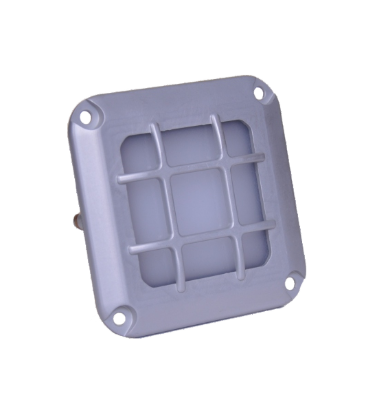

Model 500110 is essential for cargo handling during night operations, low-light conditions, or covert loadouts. It offers a rugged lighting solution for aircraft cargo spaces, tactical transport cabins, or utility bays where visibility, durability, and low-profile design are required.
Whether you’re outfitting a modern transport aircraft or retrofitting a utility compartment, this dome light delivers reliable performance in the most demanding environments.
Specifications
| Light Source | LED |
| Power Supply | 28 VDC |
| Power Consumption | 4W |
| MTBF | > 20,000 flight hours |
| Operating Temperature | -55 °C to +80 °C |
| Compliance | RTCA DO-160G MIL-STD-810G MIL-STD-461F |
| Socket Type | D38999/20JA35PN |
| Dimensions | 90 mm x 90 mm x 39.5 mm (depth incl. connector) |
| Mounting | 4x Ø4.2 mm panel mount holes (66 mm spacing) |
