Features
- Designed for wide-area and long-distance illumination
- Enhances night vision capabilities for safe high-speed driving
- Special optics for close-distance illumination without glare
- Compact and robust design for extreme environmental conditions

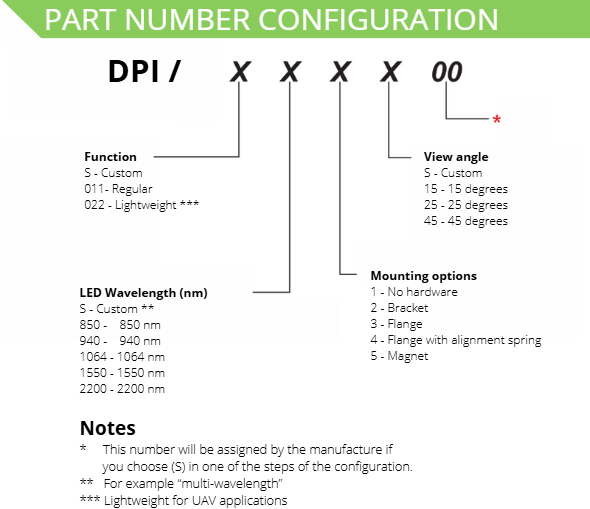

- Optional features include different wavelengths, intensities, and mounting/finishing options
Additional information
The DPI-011-850 IR Covert Illuminator is a compact and rugged solution designed to enhance vehicle operations requiring improved visibility when using night vision technology. Featuring advanced infrared lights, this illuminator provides wide and long-range coverage to support safe driving at both low and high speeds without producing any visible light.
Its precision optics deliver a broad, glare-free beam for short-range navigation while maintaining long-distance reach for improved situational awareness. Built to perform in the harshest environments, the DPI-011-850 includes a versatile mounting system that fits a wide range of military vehicles.
This infrared lighting solution is also available with various customization options, including different wavelengths, adjustable intensity levels, and a selection of mounting and finishing choices to meet your specific operational requirements.
Specifications
| Description | 850 – 2300 nm IR Covert Illuminator |
| Visibility Range | 50 – 100 meters |
| Wavelength | 850nm |
| View Angle | 15 – 25 – 45 degrees |
| Radiant Power | 180mW |
| Power Consumption | 2.4W |
| Dimmer Function | High/Low Beam |
| Diameter | 59.60 mm |
| Length | 54.20 mm |
| Shape | Round |
| Outer Lens Colour | Black |
| Housing Material | Aluminum |
| Mounting Type | Flange mount / Magnet |
| Connector or Wiring | MIL-DTL 38999 series |
| Standards | MIL-STD 461G, MIL-STD 810G/H |
We offer matching night vision goggles for these IR lights, click the button below the explore matching night vision goggles.
