Beam Pattern in Vehicle Lighting: Spot, Flood and Combo Beams Explained

A beam pattern is the way a lamp distributes its light: how wide it spreads, how far it reaches and where the intensity is concentrated. Two lamps with the same lumen rating can light a road, a loading area or a treeline in very different ways, so the pattern, not the lumen figure, decides whether a lamp suits the task.

This guide is written for buyers and engineers who specify driving lamps, work lamps and searchlights for fleet, specialist and military vehicles. It covers spot, flood and combination beams, the photometric figures that predict reach, and how UN and US rules define the cut-off and test points of road beams.

Beam pattern comparison in vehicle lighting showing spot beam vs flood beam with LED light modules on dark background

What a Beam Pattern Describes

Photometrically, a beam pattern is a map of luminous intensity, measured in candela, against direction. Four characteristics describe it:

  • The shape of the light spread
  • The width of illumination
  • The distance the light reaches
  • The intensity concentration

Width is usually given as two angles. The beam angle spans the directions in which intensity is at least 50% of the maximum; the field angle spans those in which it is at least 10%. Floodlight photometry groups field angles into NEMA types, from Type 1 (10 to 18 degrees) to Type 7 (130 degrees and over), and treats a field angle below 10 degrees as a spotlight.

For a vehicle lamp, the most useful single document is an isolux chart: a plan view of the ground ahead with lines of equal illuminance, which shows how far and how wide the beam reaches at a given lux level. Ask for one, or for a candela table, before comparing lamps on paper. Two data sheets that quote only lumens cannot tell you which lamp will light the area you need.

Spot Beam vs Flood Beam vs Combo Beam

The spot vs flood choice is a trade between reach and width. The same light concentrated into a narrow cone carries further; spread into a wide one, it covers more ground close to the vehicle. A combination optic splits the difference.

Spot Beam

A narrow, concentrated beam with a high peak intensity that pushes light far forward. Best for:

  • Long-range identification of obstacles, vehicles and people
  • Open terrain and unlit routes, as a supplement to the vehicle’s main beam
  • Searchlights aimed at a point rather than an area

Flood Beam

A wide, tall pattern that lights a large area at short distance. It improves peripheral awareness around the vehicle but does not project far ahead. Best for:

  • Low-speed manoeuvring and reversing
  • Work zones, loading and recovery tasks
  • Docking or trailer coupling

Combination Beam

A combination (combo) beam puts spot optics in the centre and flood optics at the sides, so one lamp gives forward distance and side light. It suits utility vehicles, patrol and search vehicles and military platforms where mounting points are limited. The compromise is that it reaches less far than a dedicated spot and lights the near field less evenly than a dedicated flood.

Comparison

Beam Reach Width Typical task on the vehicle
Spot Long Narrow Long-range identification, searchlights
Flood Short Wide and tall Work areas, reversing, coupling
Combination Medium to long Medium to wide Mixed terrain, few mounting points
Trapezoid Medium Medium General work light with some forward reach

The pattern is often a part number decision rather than a lamp decision. Our round work light with spot and flood beam is listed as 1501641 (flood), 1501661 (spot) and 1501651 (trapezoid), with one lumen figure (raw 2,385, effective 1,340) for the range. The housing, connector and output are the same; where the light lands is not.

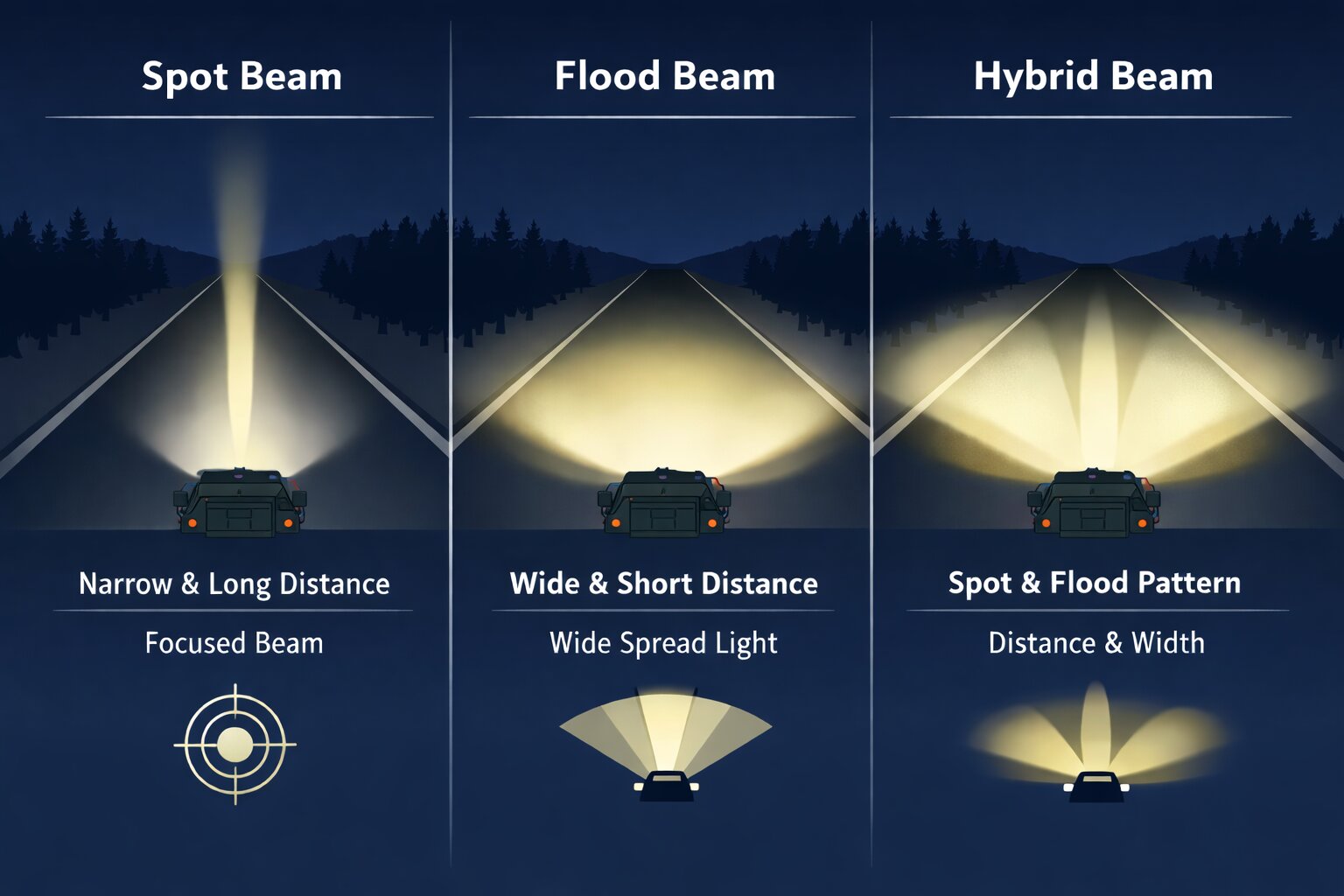

Diagram comparing spot beam, flood beam and hybrid beam patterns on a military vehicle at night showing distance and light spread differences

What Sets Reach: Peak Intensity, Not Total Output

Lumens measure the total light a lamp emits in all directions. Candela measure intensity in one direction. Reach depends on the second, which is why a lower-lumen lamp with a concentrated beam can light an object further away than a brighter lamp with a wide one. Poor forward visibility is often a distribution problem rather than an output problem.

Illuminance on a target falls with the square of the distance (E = I / d2), so the distance at which a beam still gives a set illuminance is the square root of its intensity divided by that illuminance. Doubling reach therefore takes four times the intensity, which is why driving lamps rely on tight optics rather than simply more LEDs.

A worked example: our LED auxiliary driving lights (Model 8710) have a published peak of 133,000 cd. On the beam axis that gives about 1 lux at roughly 365 m, calculated without atmospheric losses. The same lamp lists 3,300 raw and 1,440 effective lumens; the effective figure is what leaves the lamp after optical losses, and neither lumen figure predicts the reach on its own. Our article on lux vs lumens vs candela explains the units themselves.

Beam Distance vs Usable Visibility

A published beam distance is normally calculated from peak intensity to a threshold illuminance. ANSI/PLATO FL 1 (2019), the performance standard for portable lights, defines beam distance as the distance at which the light falls to 0.25 lux, roughly the light of a full moon. Vehicle lamp makers do not all use that threshold; some quote the distance to 1 lux.

Either way, a long beam on paper does not guarantee that the driver recognises an object in time. Usable visibility depends on:

  • Contrast: a dark object against a dark background needs more light than a reflective one.
  • Beam uniformity: dark gaps between the near and far field hide obstacles, and a hot spot draws the eye away from the rest of the scene.
  • Cut-off sharpness: a sharp cut-off lets the beam be aimed precisely and keeps light out of the eyes of other road users.
  • Glare control: for oncoming drivers, and for the crew from light reflected off the vehicle’s own bodywork and equipment.
  • Surface reflectivity: wet tarmac, sand, gravel and snow return very different amounts of light.

How the Standards Define Cut-Off and Test Points

Road lighting regulations do not specify a beam by lumens or by distance. They set luminous intensity at defined angles and, for the passing (dipped) beam, require a cut-off so that the beam can be aimed and glare limited.

In the UN regulations the passing beam is measured at 25 m (UN R112, paragraph 6.1.2). Test points above the cut-off, such as B50L, carry maximum values to protect oncoming drivers; points below it, such as 75R and 50V, carry minimum values to light the road.

Where a passing beam has to break off
“The luminous intensity distribution of the principal passing-beam headlamp shall incorporate a ‘cut-off’ … (a) For right hand traffic beams: (i) A straight ‘horizontal part’ towards the left; (ii) A raised ‘elbow-shoulder’ part towards the right. … In each case the ‘elbow-shoulder’ part shall have a sharp edge.”
In plain terms: the beam stays low on the side of oncoming traffic and rises towards the kerb, where it lights signs, verges and pedestrians. Left hand traffic beams mirror the shape.
UN Regulation No. 112, paragraph 6.2.1, 01 series of amendments (text up to Supplement 4, in force 15 July 2013; OJ L 250, 22.8.2014). Its provisions are combined into UN Regulation No. 149, in force since 15 November 2019.

UN Regulation No. 149 on road illumination devices entered into force on 15 November 2019 and combines the provisions of UN Regulations 19, 98, 112, 113, 119 and 123. Many lamps in service, including driving lamps, still carry R112 or R113 approvals.

Driving (main) beams have no cut-off. They are limited by intensity instead: the maximum may not exceed 215,000 cd, and each lamp carries a reference mark equal to its maximum intensity divided by 4,300 (UN R149, paragraphs 5.1.3.5 and 5.1.3.6). UN R48 (07 series, paragraph 6.1.9.1) caps the aggregate maximum intensity of all main beams that can be switched on together at 430,000 cd, a reference value of 100. For a fleet adding driving lamps, that is the budget: add the reference marks of the headlamp main beams and the extra lamps before ordering. The 133,000 cd of Model 8710 works out at about 31 on that scale before rounding.

In the United States, FMVSS 108 (49 CFR 571.108, S4) defines the lower beam as a beam intended to illuminate the road and its environs ahead of the vehicle, the upper beam as one intended primarily for distance illumination, and a cutoff as a generally horizontal, visual/optical aiming cue in the lower beam. Photometry is again set as minimum and maximum intensities at test points located by angle from the H-V axis. A correct headlight beam pattern in either system is one that meets its test points when aimed by its cut-off, not one that simply looks bright. For how the approval systems differ overall, see DOT vs ECE vs SAE lighting standards.

Choosing Beams for Fleet and Military Vehicles

Most specialist vehicles need more than one beam, each with its own job and its own switching.

Driving on unlit roads and tracks. A dedicated driving beam with a high peak intensity, used together with the main beam. Under UN R48 (07 series), main beams switch off automatically when the dipped beam is manually deactivated (paragraph 6.1.7.1), and all main beams switch off together when the driver changes to dipped beam (paragraph 6.1.7.4). Auxiliary driving lamps therefore belong on the main-beam circuit, not on an independent switch.

Work around the vehicle. Flood or trapezoid work lamps for loading, recovery, coupling and maintenance at night, switched separately from the road lighting.

Search and observation. Narrow-beam searchlights, often remote controlled, reach beyond fixed lamps and can be turned towards the object instead of turning the vehicle. Our LED search lights range includes remote controlled units with visible and infrared modes, alongside the work lamps above.

Blackout driving. A blackout driving light has the opposite objective to a driving beam. It gives the driver just enough light ahead to keep moving when the service headlamps are off, so it is specified for low signature rather than reach.

Six points to settle before choosing a beam
Task and speed. What must be seen, at what distance and at what vehicle speed.
Peak intensity. The candela figure and the distance it gives at a stated lux threshold, not lumens alone.
Beam data. Beam and field angles, or an isolux chart, for each lamp being compared.
Road approval. For driving beams on UN R48 vehicles, an R149 or R112 approval and its reference mark, within the total of 100.
Switching. Driving lamps on the main-beam circuit; work lamps and searchlights on their own switches; blackout mode where the vehicle has one.
Mounting. Height, aim and obstructions such as guards, racks and roof equipment, which cut into or reflect the beam.
Switching and reference mark points: UN R48, 07 series, paragraphs 6.1.7 and 6.1.9.1; UN R149, paragraph 5.1.3.6.

Frequently Asked Questions

Not on a vehicle built to UN R48. Paragraph 6.1.2 of the 07 series requires main-beam headlamps to be type approved, and a work lamp carries no driving-beam approval, however far its spot pattern reaches. Keep work lamps on their own switch for work use, and specify an approved driving lamp where the vehicle needs more reach on the road.

Usually because they use different thresholds. Since illuminance falls with the square of distance, the distance to 0.25 lux is twice the distance to 1 lux for the same lamp: 133,000 cd gives about 365 m at 1 lux and about 730 m at 0.25 lux, both on axis without atmospheric losses. Some figures are calculated, others measured. Compare peak candela directly, or ask both makers for the distance at the same lux level.

A trapezoid beam is a mid-focused, general-purpose work pattern. It is narrower than a flood, so it carries further, and it lights the ground ahead of the lamp and out into ditches and track edges. Choose it when a work lamp must light the path ahead of a slow-moving vehicle as well as the area beside it. Choose a flood when the task is all close to the vehicle, such as loading or coupling.
