How Do Thermal Goggles Work?
Thermal goggles have become essential tools in military, law enforcement, and search-and-rescue operations. Unlike standard night vision devices that amplify available light, thermal goggles detect heat energy emitted by objects, people, and vehicles, making them effective in complete darkness, heavy smoke, fog, and conditions where conventional night vision falls short.
This guide explains how thermal goggles work, how thermal imaging technology converts heat into a visible image, and why these devices have become a standard capability across modern military and tactical operations.
What Are Thermal Goggles?
Thermal goggles are devices that detect infrared radiation (also known as heat energy). emitted by objects, animals, and humans. All objects, regardless of temperature, emit some level of infrared radiation. Thermal goggles pick up these heat signatures and convert them into an image that can be seen by the user, allowing them to “see” in conditions where visible light is not available or is insufficient.
How Does Thermal Imaging Work?
Thermal imaging works by detecting the infrared radiation naturally emitted by objects and converting it into a visual image the human eye can interpret. The process happens in four stages.
Stage 1: Infrared Detection A specialised lens, typically made from germanium rather than glass since standard glass blocks infrared wavelengths, collects infrared radiation from the surrounding environment and focuses it onto a detector array. The amount of radiation reaching the detector varies depending on the temperature of each object in the field of view.
Stage 2: Signal Conversion The infrared detector array converts the incoming radiation into electrical signals. Each element of the array responds proportionally to the infrared energy it receives, generating a stronger signal from hotter objects and a weaker signal from cooler ones. The resolution and sensitivity of this detector array is one of the primary factors determining the quality and detection range of the thermal imaging system.

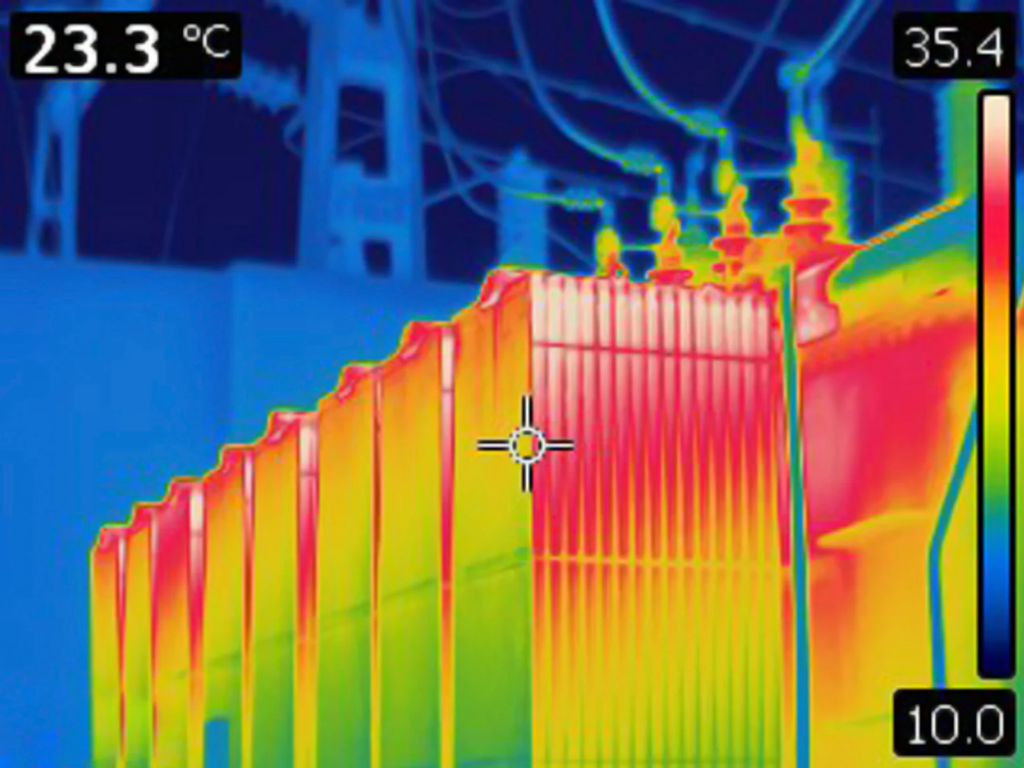

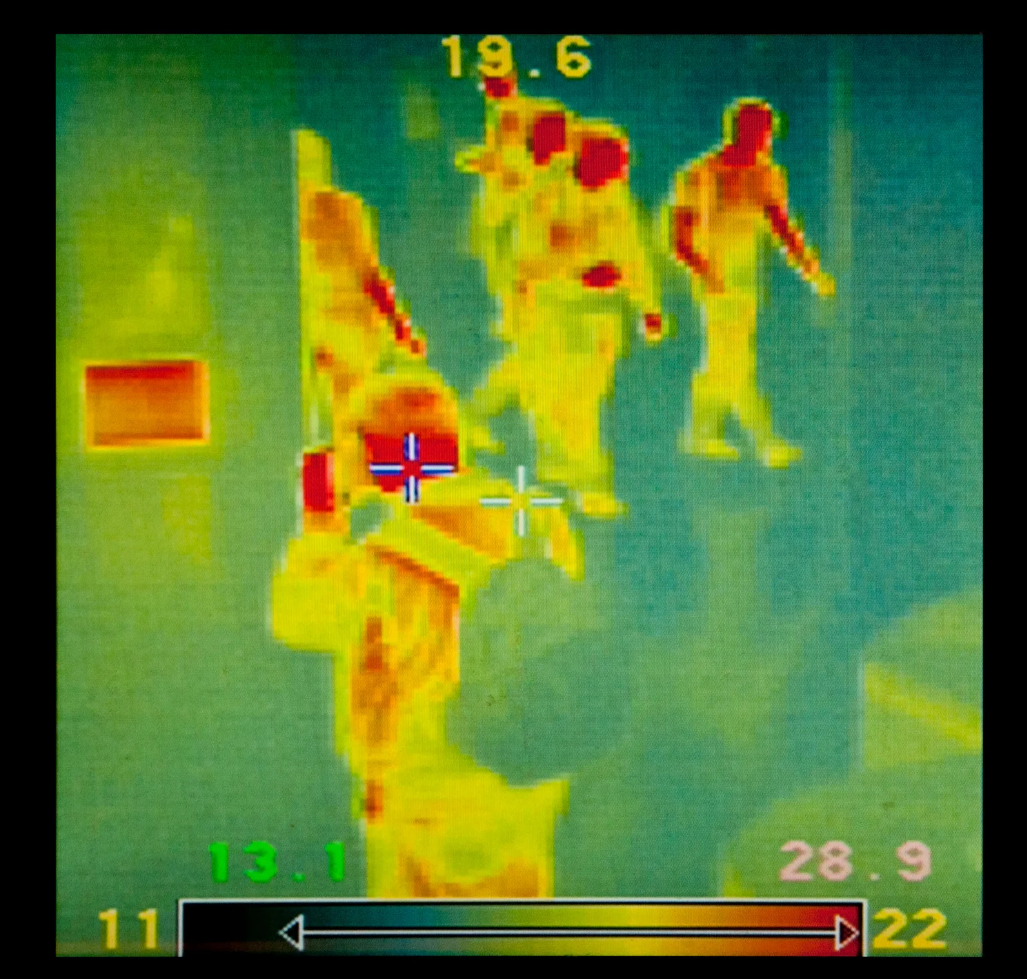

Stage 3: Image Processing An onboard processor translates the electrical signals from the detector into a thermographic image. Temperature differences are rendered as contrast differences in the display. Most thermal imaging systems offer multiple display modes including white hot, black hot, and colour palettes where different temperature ranges are assigned distinct colours for easier interpretation.
Stage 4: Display The processed thermal image is presented on a screen or eyepiece, giving the operator a real-time visual representation of the heat environment. Modern military thermal goggles update this image continuously, allowing operators to track moving heat sources and respond in real time.
Key Components of Thermal Goggles
- Infrared Lens: Captures the infrared radiation emitted by objects and focuses it onto the detector.
- Infrared Detector: A sensor array that converts infrared radiation into electrical signals. This is the heart of the thermal goggles.
- Microprocessor: Processes the electrical signals and converts them into a thermal image.
- Display Screen: Projects the thermal image inside the goggles, allowing the user to see the heat signatures.
Cooled vs Uncooled: Types of Thermal Imaging
The type of detector inside thermal goggles has a significant impact on performance, cost, and suitability for different roles.
Cooled thermal imaging uses a detector chilled to cryogenic temperatures, typically below -200°C. This dramatically increases sensitivity, allowing the system to detect very small temperature differences at long range.
It is the preferred choice for long-range reconnaissance and precision targeting. The trade-off is higher cost, greater complexity, and a warm-up period before the system is operational.
Uncooled thermal imaging uses a detector that operates at ambient temperature. Performance has improved substantially over the past decade and is more than adequate for most tactical applications.
Uncooled thermal goggles are lighter, faster to deploy, require no warm-up time, and are significantly less expensive. They are the dominant technology in helmet-mounted goggles, clip-on thermal sights, and handheld devices at squad and unit level.
Thermal Goggles vs Night Vision
Night vision devices amplify available light to produce a visible image. They provide excellent detail in low-light conditions but require some ambient light to function and struggle in complete darkness, smoke, or fog.
Thermal goggles detect heat rather than light. They work in absolute darkness with no ambient light and are largely unaffected by smoke, fog, and foliage. The trade-off is less fine detail compared to image intensification in clear conditions.
The most capable modern systems combine both technologies. Fusion systems overlay thermal imagery onto night vision in real time, giving operators the detection capability of thermal with the detail of image intensification simultaneously.
The HELM-FX Tactical Fusion System is one example, projecting live thermal overlays directly onto a night vision view to reveal heat signatures hidden by smoke, foliage, or darkness. View our full night vision and thermal imaging range for the complete product offering.
Military Applications of Thermal Imaging
Force protection and perimeter security Thermal goggles allow sentries to detect approaching personnel or vehicles at significant range in complete darkness, providing time to respond before a threat reaches a position.
Target acquisition Camouflaged positions and personnel concealed by battlefield smoke remain visible through thermal imaging. A position invisible to the naked eye can still produce a detectable heat signature.
Urban operations In urban terrain, thermal imaging detects heat transfer through surfaces, identifies recent activity, and locates personnel who have recently moved through a space.
Thermal clip-on systems For operators who need thermal capability on an existing day scope, clip-on devices allow switching from daylight to thermal without re-zeroing.
The TI-GEAR-C Precision Thermal Clip-On Sight and TICON Thermal Clip-On for Night Vision both preserve ballistic zero while adding full thermal imaging capability to an existing optic.
Limitations of Thermal Imaging
Detail and resolution Thermal goggles show temperature contrast rather than surface detail. Identifying a specific individual or reading a vehicle registration at range is difficult with thermal imaging alone, which is why fusion systems combining thermal and image intensification are increasingly preferred.
Glass and water Thermal imaging cannot see through glass or water. Both materials block the infrared wavelengths thermal sensors detect.
Temperature equalisation Objects that have reached the same temperature as their surroundings become harder to detect. A person stationary in cold conditions for an extended period will produce a weaker heat signature than someone recently active.
Cost High-performance thermal goggles, particularly cooled devices, represent a significant procurement cost compared to standard image intensification night vision.
Frequently Asked Questions
The human body continuously produces heat, maintaining a core temperature of around 37°C. This makes people one of the most reliably detectable subjects for thermal imaging.
Exposed skin, the face, and hands produce the strongest signatures. Insulating clothing reduces but does not eliminate detection.
Detection range varies with sensor quality and lens focal length. Entry-level uncooled devices typically detect a standing person at 300 to 500 metres. Military-grade uncooled systems can detect personnel beyond 1,000 metres.
Cooled long-focal-length systems can detect at several kilometres. Recognition range is typically significantly shorter than detection range.
Most uncooled systems use a microbolometer, a grid of tiny resistive elements that change electrical resistance when infrared energy hits them. The processor reads these values across the entire array and constructs a temperature map that becomes the thermal image.
Cooled systems use more sensitive materials such as indium antimonide, which require cryogenic cooling to function but detect much smaller temperature differences.
