LED Square Signal and Tail Lights

LED Square Signal and Tail Lights

The Model 224 LED Square Signal and Tail Lights are a robust and reliable lighting solution for vehicles and industrial applications. Designed to replace traditional bulb-based 5″ x 5″ square lights, the Model 224 provides improved durability and performance with advanced LED technology. Whether used as a backup light, rear fog light, stop and tail light, or turn signal, this model delivers bright, consistent illumination while withstanding tough conditions. Its acrylic lens resists scratches and scuffs, and its sturdy ABS housing ensures long-lasting performance on industrial job sites.

Key Features

  • Versatile Configurations: Available as backup, rear fog, stop/tail, or turn signal lights.
  • Durable Construction: Acrylic lens resists scratches and scuffs, while ABS housing withstands demanding environments.
  • Advanced LED Technology: Provides brighter, longer-lasting illumination compared to bulb-based lights.
  • Low Profile Mount: Ensures easy installation and a sleek appearance.
  • Weatherproof Design: Sealed to meet IP67 standards for dust and water protection.

Available Configurations

Part No. Description
0442611 12-24V ECE/SAE LED Backup Light with Harness
0342361 12-24V ECE LED Rear Fog Light with Harness
0342301 12-24V SAE LED Stop & Tail Light
0342291 12-24V ECE/SAE LED Turn Signal Light

Specifications

Performance
Input Voltage 12-24V DC
Lens Material Acrylic (scratch-resistant)
Housing Material Sturdy ABS
Mounting Type Low Profile Mount
Ingress Protection IP67 (dustproof and waterproof)
Compliance FMVSS 108, SAE, ECE
Certifications DOT and Transport Canada compliant

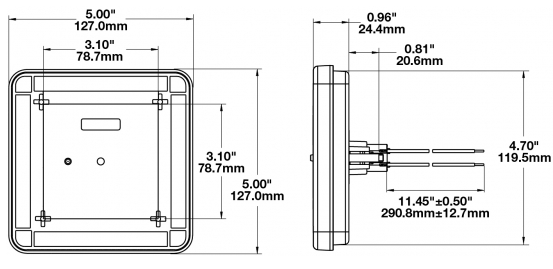

Dimensions
Height 127.00 mm / 5 in
Width 127.00 mm / 5 in
Depth 44.96 mm / 1.77 in
Shape Square
Construction
Outer Lens Material Acrylic
Outer Lens Color Clear
Housing Material ABS
Housing Color Black
Mounting
Mounting Hardware (x2) M6-1 x 25 Mounting Bolts
Mating Connector 4-Pin Deutsch Plug (DT06-4S)
Environment
Minimum Operating Temperature -40 °C / -40 °F
Maximum Operating Temperature 65 °C / 149 °F
Weight
Product Weight 0.46 lbs / 0.21 kgs
